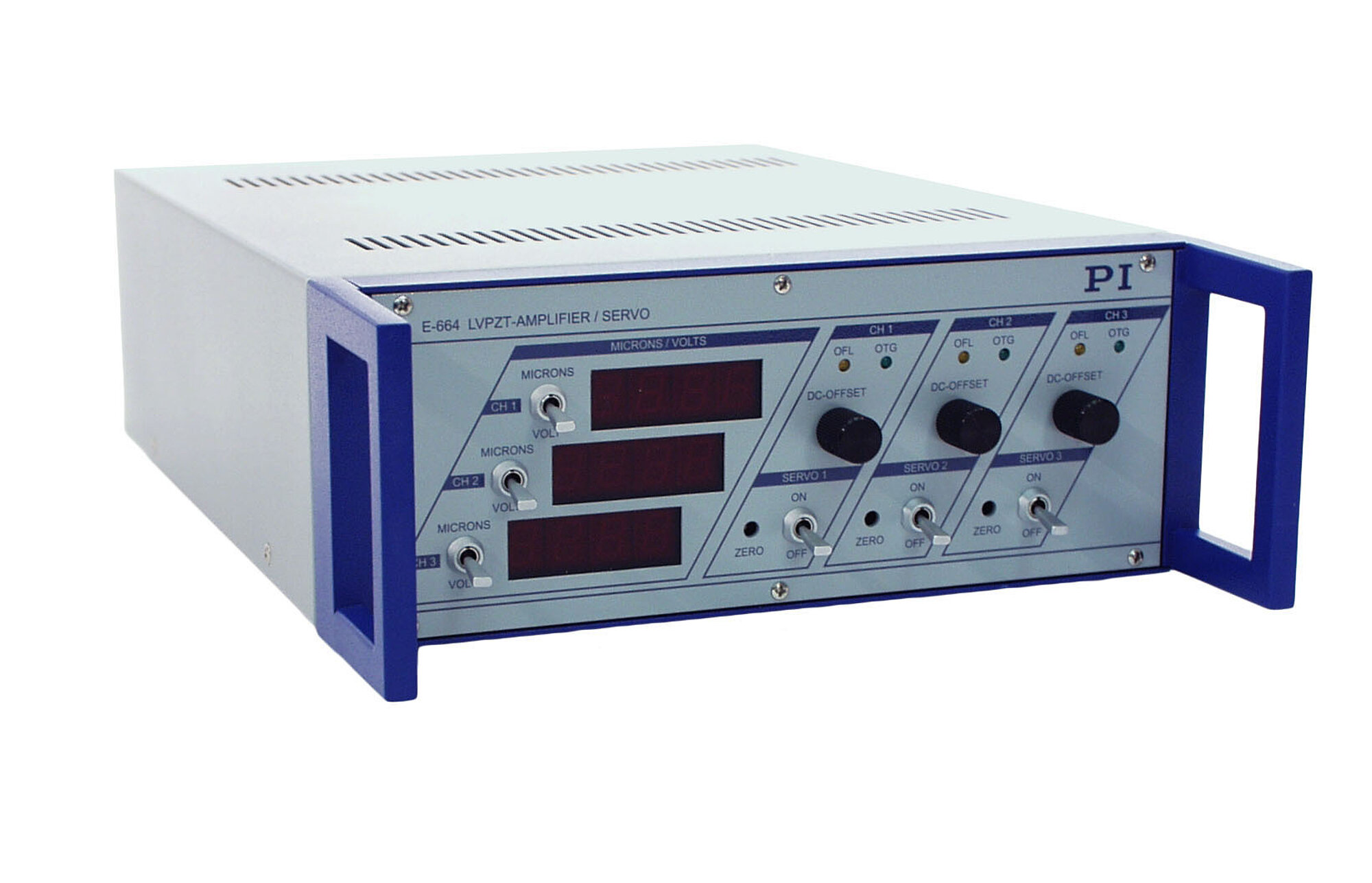

E-664 NanoCube® Piezo Controller

For the P-611.3S XYZ-Nanopositioning System

  • Peak power 3 × 14 W
  • Position control with notch filter for higher bandwidth and stability
  • Voltage / position indicator
  • Inexpensive controller for P-611.3S NanoCube® nanopositioning systems
E-664 NanoCube® Piezo Controller
제품 설명 사양 다운로드 견적 / 주문

Piezo amplifier and servo controller for the P-611.3S

The E-664 piezo amplifier and servo controller is especially tailored to the operating requirements of the P-611.3S NanoCube® XYZ nanopositioning system. Three powerful and low-noise piezo amplifiers and the control electronics with instrument amplifiers for high-resolution strain gauge sensors allow a position resolution up to 2 nm as well as dynamic operation.

The combination of the E-664 controller and P-611.3S NanoCube® makes it an inexpensive system for 3-D nanopositioning.

Specifications

Datasheet

Datasheet E-664

버전 / 날짜
2018-03-09
pdf - 102 KB
버전 / 날짜
2018-03-09
pdf - 103 KB

Downloads

Datasheet

Datasheet

Datasheet E-664

버전 / 날짜
2018-03-09
pdf - 102 KB
버전 / 날짜
2018-03-09
pdf - 103 KB

Documentation

Documentation

Short Instruction PZ300

Housed Analog Piezo Electronics E-4xx, E-5xx, E-6xx, E-8xx

버전 / 날짜
1.2.0 03/2024
pdf - 754 KB
버전 / 날짜
1.2.0 03/2024
pdf - 791 KB
Documentation

User Manual PZ99

E-664 Piezo Amplifier / Controller, 3 Channels

버전 / 날짜
2003-10-15
pdf - 566 KB
영어
