C-891.130300 PIMag® Motion Controller for Magnetic Direct Drives

1 Axis, for 3-Phase Linear Motors

C-891.130300 PIMag® Motion Controller for Magnetic Direct Drives
제품 설명 사양 다운로드 견적 / 주문
  • Output current 5 A
  • 20-kHz control bandwidth
  • Protection against overload, overcurrent, overtemperature
  • Digital inputs and outputs for trigger and stop function
  • USB interface for commanding and configuration

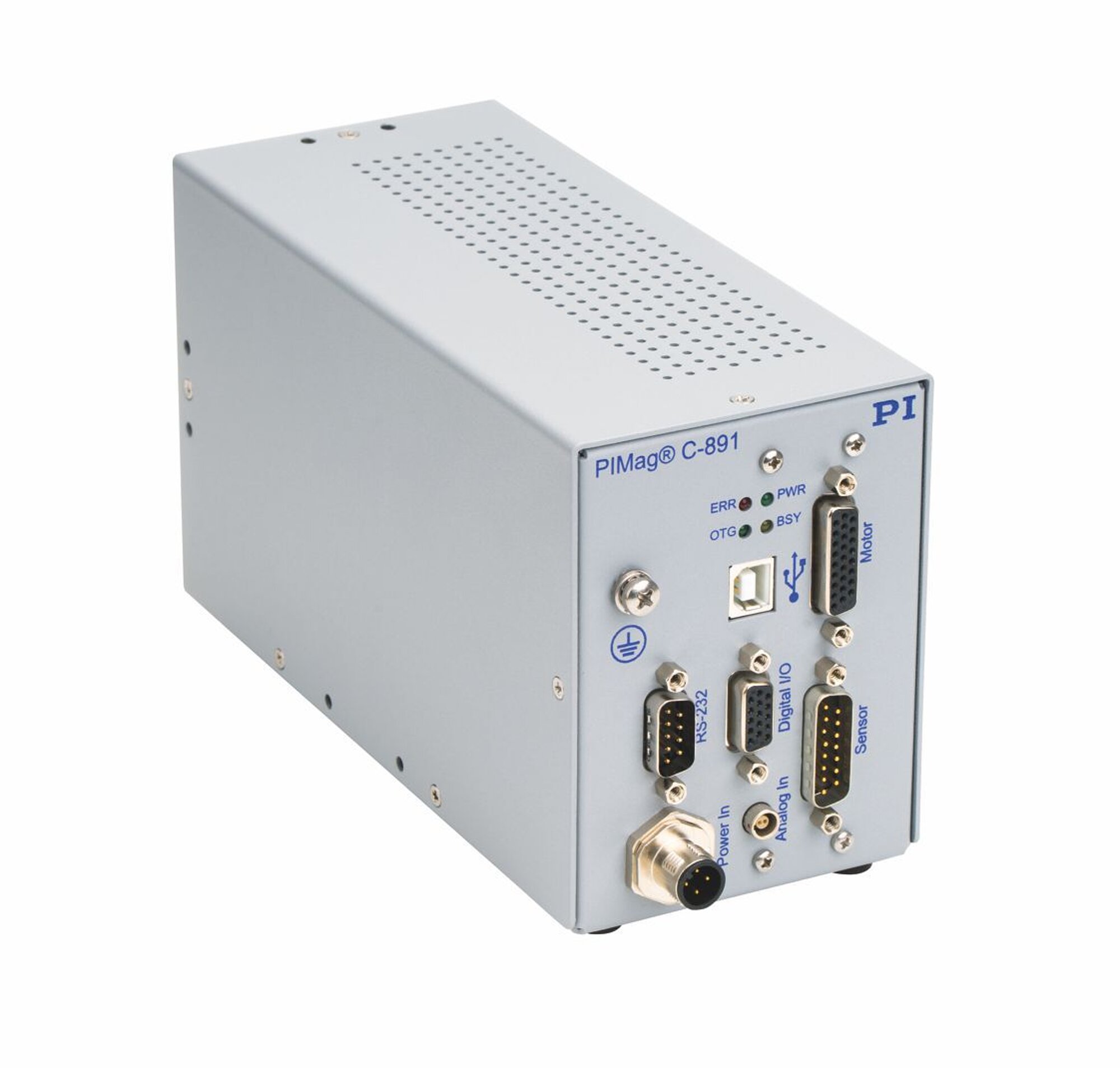

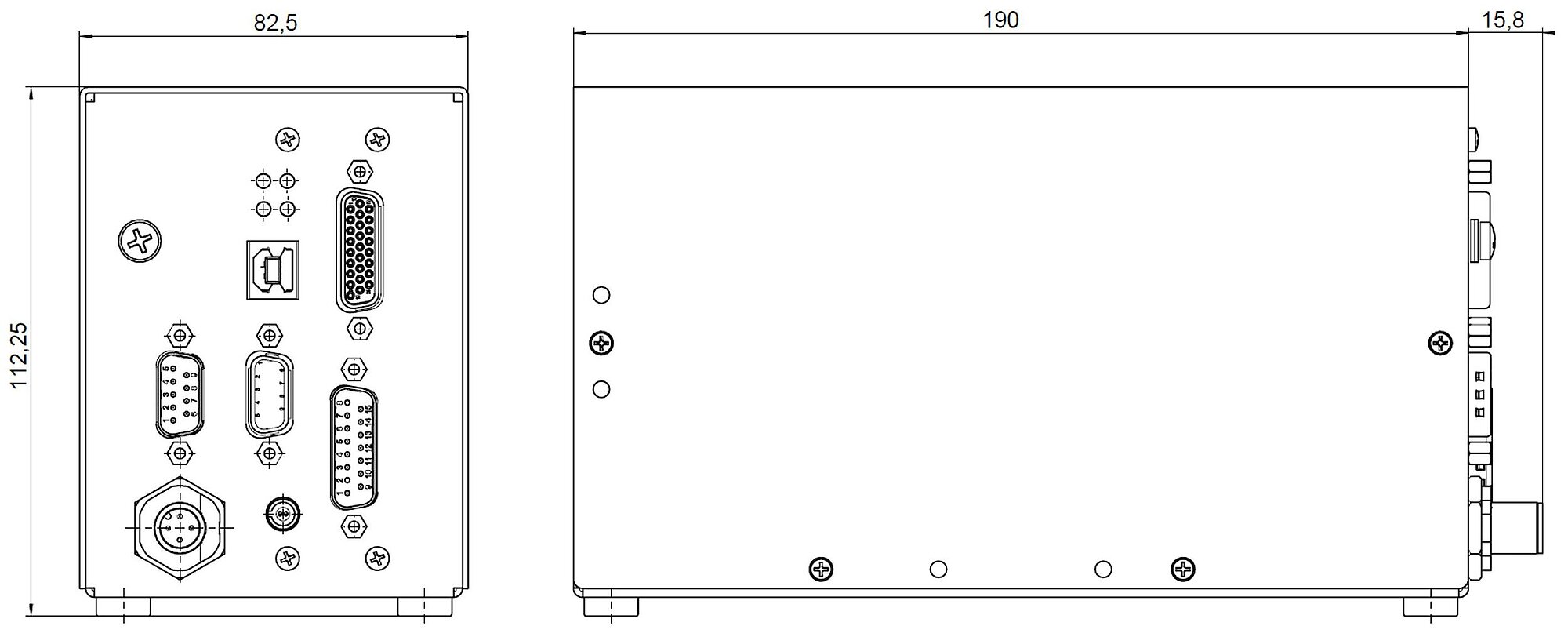

Digital motion controller for PIMag® linear motors

1 motor channel, 1 sensor channel. For three-phase linear motors with currents of 5 A per phase. Sine-commutated operation, field-oriented current control. Automatic commutation angles adjustment. PID controller for position and velocity.

Encoder inputs

Differential signal transmission for digital (A/B) or analog (sin/cos) encoder signals. Supports BiSS interface for absolute encoders. TTL inputs for limit and reference switches.

Extensive functionality

Protection for motor and motor driver due to protective shutdown and current limitation. Motor stop via external switch. Data recorder, wave generator, macros. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Interfaces

USB and RS-232 for commanding. Digital inputs and outputs for automation. Analog input for recording an external sensor signal.
